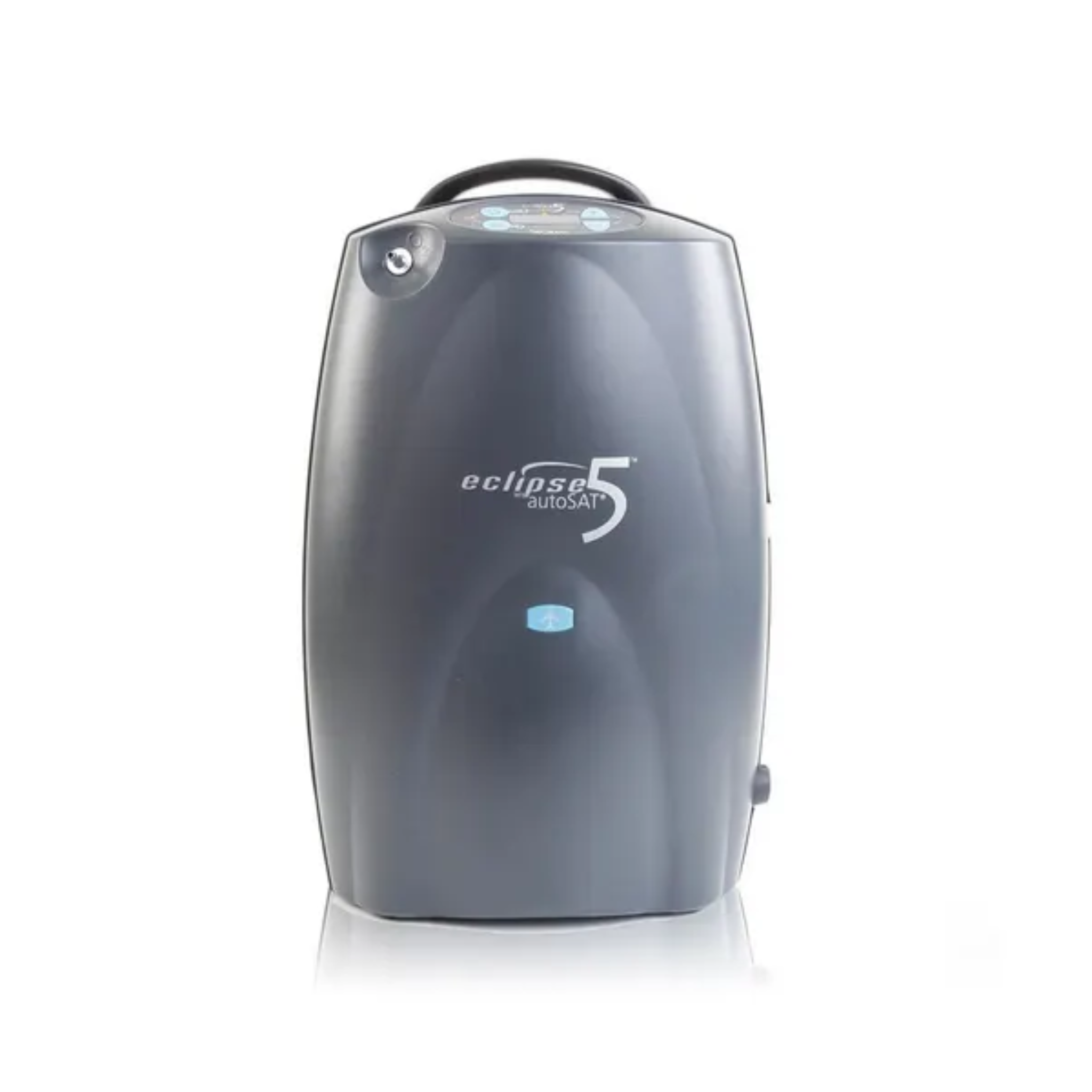

CAIRE SeQual Eclipse 5 Mobile Concentrator

Name: CAIRE SeQual Eclipse 5 Mobile Concentrator
Brand: By CAIRE
Price: 3200.00 USD
Availability: InStock

$3,200.00

$4,400.00

$3,200.00

$4,400.00

Description

Features

Offers both continuous flow (0.5–3 LPM) and pulse dose (9 settings, up to 192 mL)
autoSAT® technology adapts oxygen delivery with adjustable rise time and bolus size :contentReference[oaicite:1]{index=1}
Functions seamlessly on AC, DC (vehicle), or battery power—can run and recharge simultaneously on DC :contentReference[oaicite:2]{index=2}

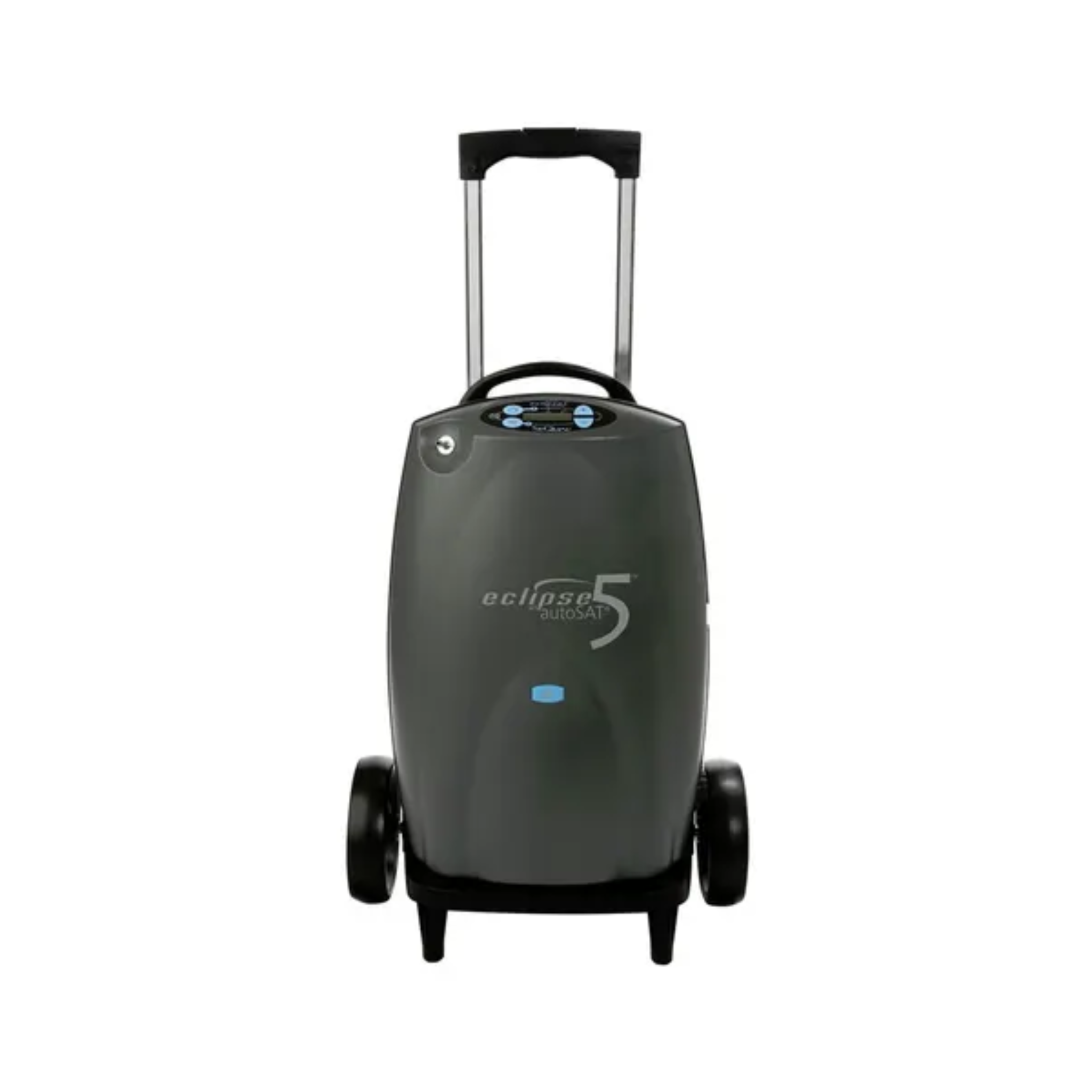

Lightweight and transportable at ~18.4 lbs (with battery), includes rolling cart with telescoping handle and durable wheels :contentReference[oaicite:3]{index=3}
Quiet operation: 48 dB on continuous flow, 40 dB on pulse dose—ideal for discreet use :contentReference[oaicite:4]{index=4}

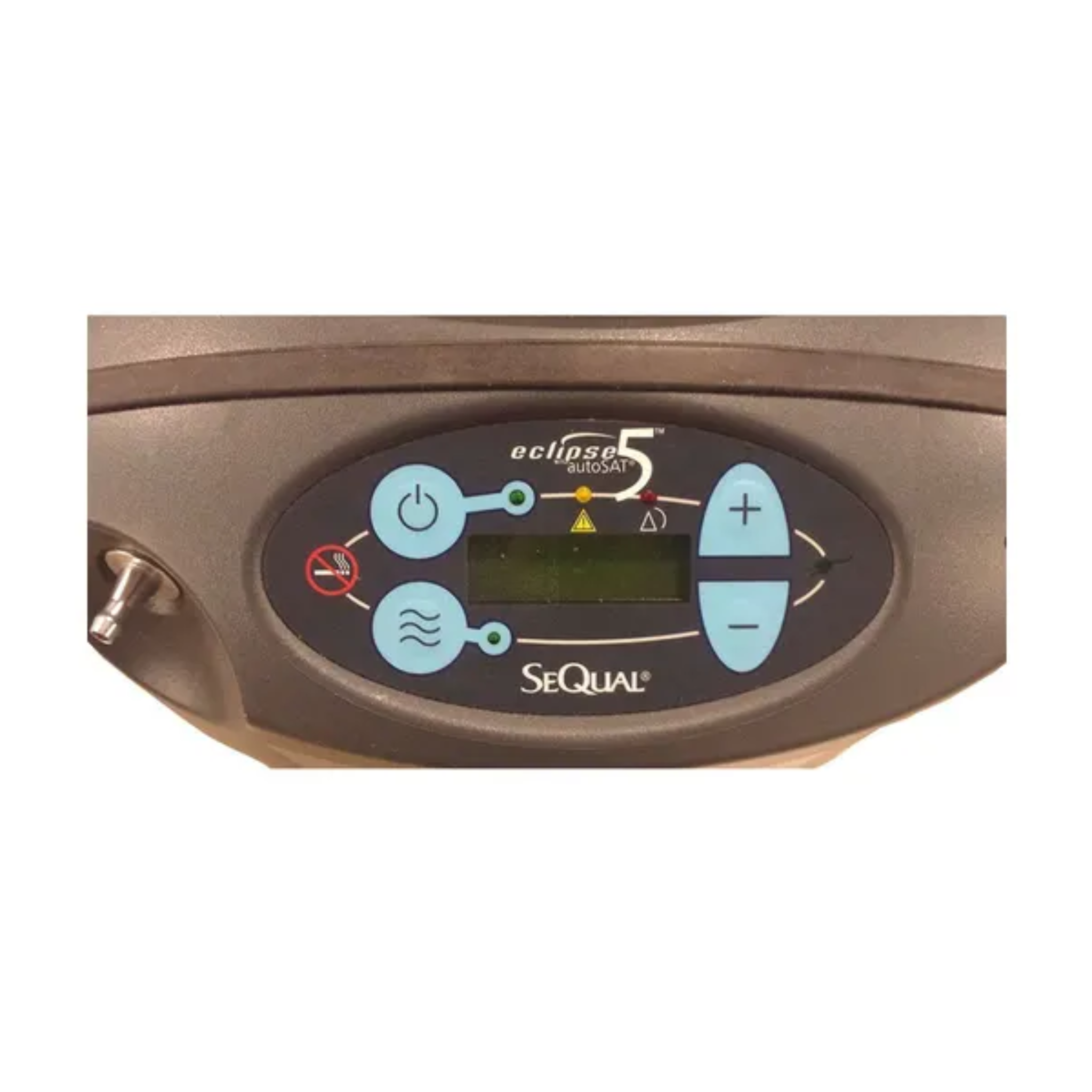

Easy-to-read LCD displays flow in LPM or mL for precise dosage monitoring :contentReference[oaicite:5]{index=5}
FAA-approved for airline travel and suitable for use around the clock (24/7) :contentReference[oaicite:6]{index=6}
Extremely high reliability (>99% failure-free out of the box) with low maintenance needs :contentReference[oaicite:7]{index=7}
Built using efficient VPSA air separation technology for consistent oxygen purity (~90%) :contentReference[oaicite:8]{index=8}

Specification

autoSAT Technology ensures steady oxygen delivery with adjustable rise time & bolus size
Flow: 0.5–3 LPM (continuous); 16–192 mL (pulse dose)
Battery charges while connected to DC power; all flow settings available during DC operation
Three rise time options & three pulse dose sensitivity settings
Upgraded internal system for improved reliability
Contemporary mobile cart with easy-access removable battery
FAA approved for air travel
Noise Level: 40–48 dB (quiet operation)
Oxygen Purity: 87%–95% at sea level
Battery Duration: Up to 5.1 hrs (pulse), 2 hrs (continuous at 2 LPM)
Battery Charging Time: 1.8 to 5 hrs (to 80%)
Dimensions: 12.3" W x 7.1" D x 19.3" H
Weight: 15 lbs (unit only), 18.4 lbs (with battery)
Power: AC 100–240V, DC 12V, Battery 97.5 W-Hr Lithium
Alarms: Low battery, power loss, oxygen limits, no breath detected
Indicator Lights: Green (normal), Yellow (caution), Red (warning)
Altitude Range: Sea level to 13,123 ft; Operating Temp: 50°F to 104°F
Warranty: 3 years on unit, 1 year on accessories

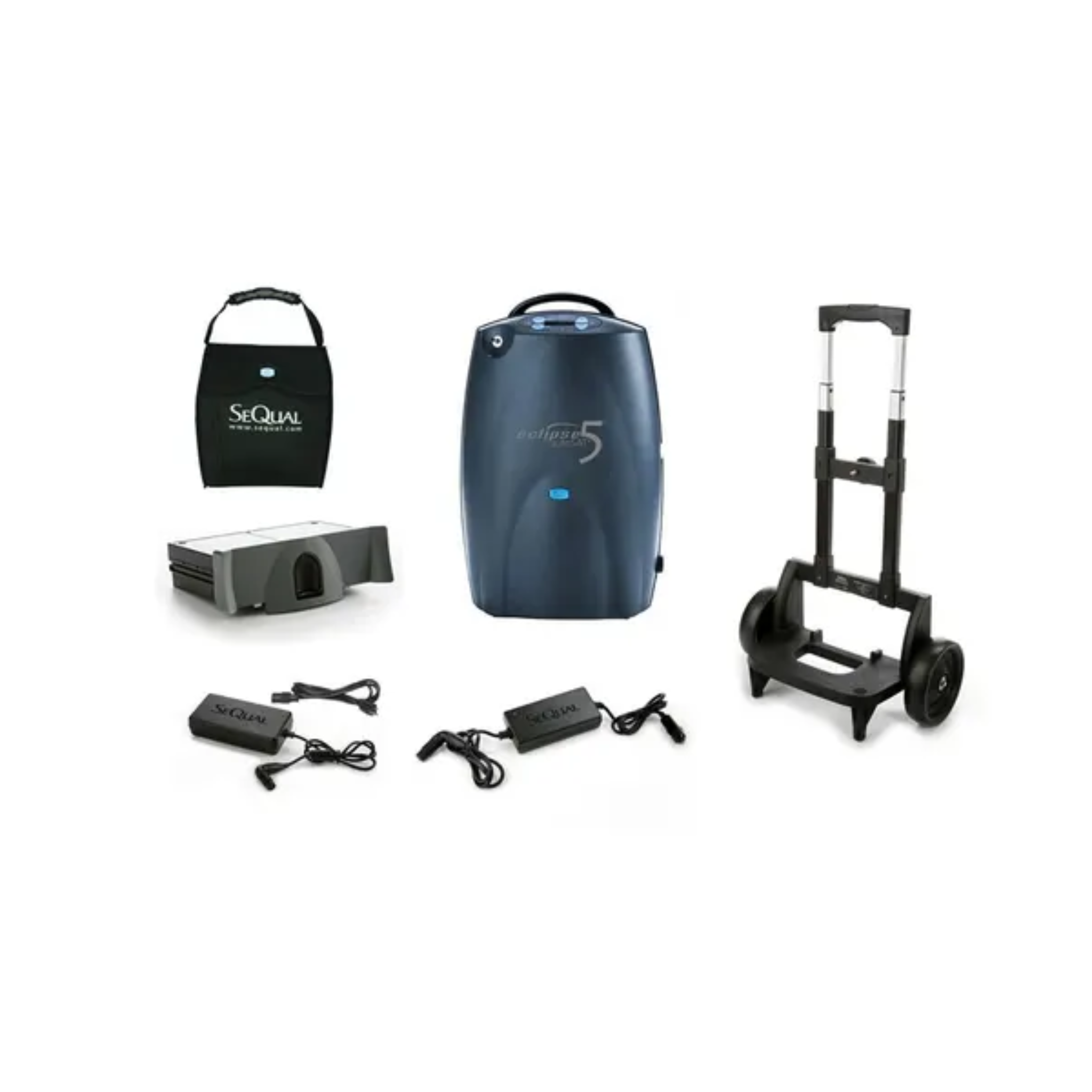

Box Includes: Eclipse 5 unit, battery, AC/DC adapters, bag, cart, cannula, user manual
